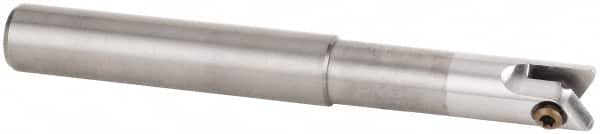

Kennametal - 1/2" Cutting Diam, 1/2" Shank Diam, 1/2" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 1 Insert, KDMT 0500.. Insert, KDMT Toolholder, Through Coolant
Item #: 40272668
Brand: Kennametal
Model #: 2878733
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.70 |
| Cutting Diameter (Inch) | 1/2 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Number of Cutter Inserts | 1 |
| Insert Style | KDMT 0500.. |
| Toolholder Style | KDMT |
| Series | KDMT |
| Overall Length (mm) | 162.00 |
| Overall Length (Decimal Inch) | 6.3780 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | Through Coolant |
| Number of Flutes | 2 |
| Head Length (mm) | 52.00 |
| Head Length (Decimal Inch) | 2.0472 |
| Shank Length (mm) | 110.00 |
| Shank Length (Decimal Inch) | 4.3307 |
| Maximum RPM | 40000 |
| Maximum Cutting Diameter (Decimal Inch) | 0.5000 |
