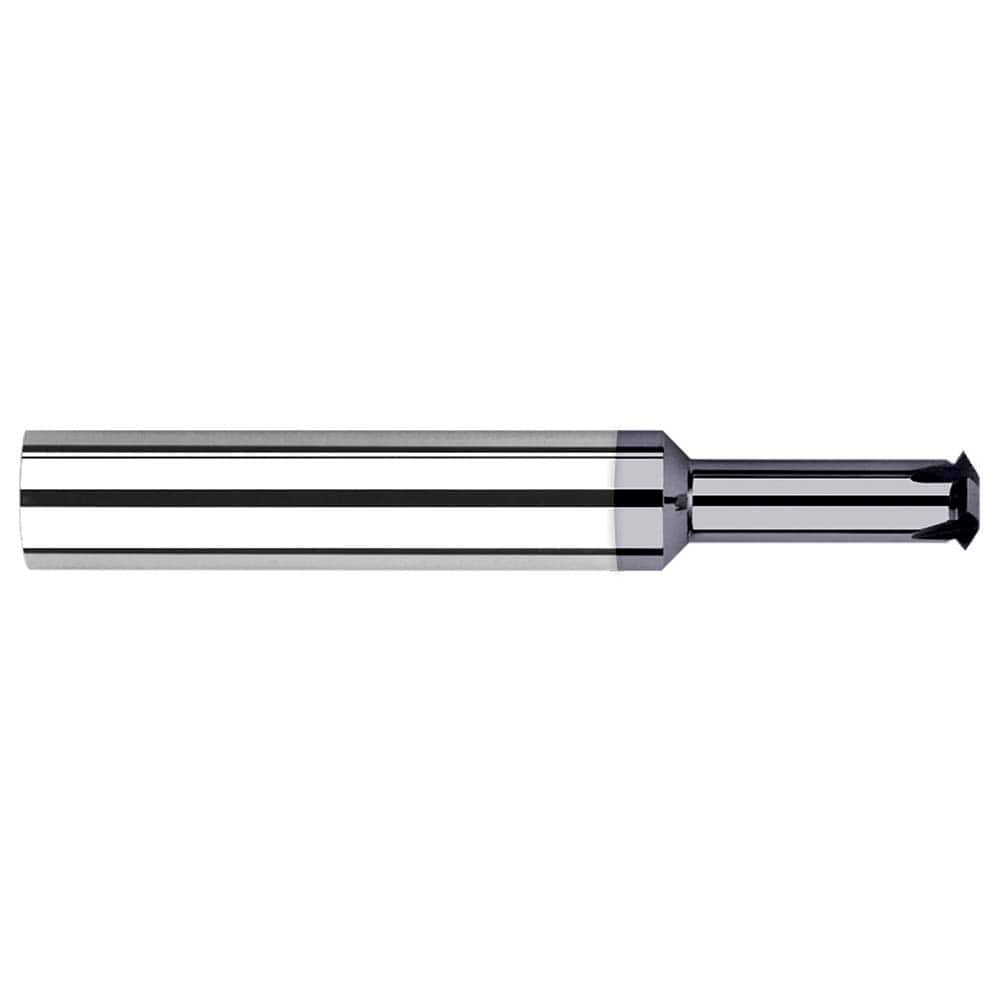

Harvey Tool - #6 Internal/External 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 40278319
Brand: Harvey Tool
Model #: 71020-C3
Product Specifications
| Maximum Threads Per Inch | 40 |
| Minimum Threads Per Inch | 32 |
| Thread Type | Internal/External |
| Minimum Nominal Diameter (Inch) | #6 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Cutting Diameter (Inch) | 0.0980 |
| Shank Diameter (Inch) | 3/16 |
| Material | Solid Carbide |
| Number of Flutes | 4 |
| Neck Diameter (Decimal Inch) | 0.0500 |
| Neck Length (Decimal Inch) | 0.2500 |
| Thread Size | #6-32 - #6-40 |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
| Thread Standard | UN 60 Degrees |
| Finish/Coating | AlTiN |
| Through Coolant | NonThrough Coolant |
