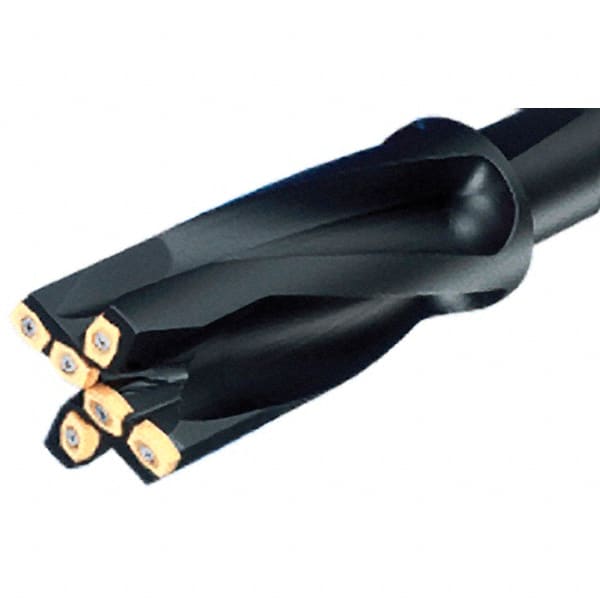

Iscar - 2-1/2" Cut Diam, 1-1/2" Shank Diam, 8.99" OAL, Indexable Square Shoulder End Mill - PLHT 1305-PDX Inserts, Weldon Shank, Through Coolant, Series IscarPlunger
Item #: 40307944
Brand: Iscar
Model #: 3102911
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Cutting Diameter (Inch) | 2-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Overall Length/Projection (Decimal Inch) | 8.9900 |
| Series | IscarPlunger |
| Through Coolant | Coolant Through |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | PH-A |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 6.3100 |
| Weldon Flat | Yes |
| Insert Compatibility | PLHT 1305-PDX |
| Shank Length (Decimal Inch) | 2.6800 |
