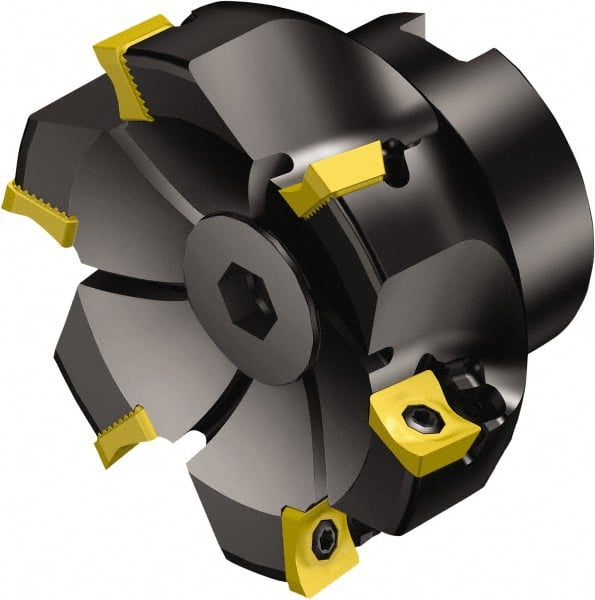

Sandvik Coromant - 8 Inserts, 5" Cut Diam, 1-1/2" Arbor Diam, 0.4331" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 2.4803" High, R590-1105.. Insert Compatibility, Through Coolant, Series CoroMill Century
Item #: 40327884
Brand: Sandvik Coromant
Model #: 5740382
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | R590-1105.. |
| Series | CoroMill Century |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA590 |
| Maximum RPM | 20500 |
| Cutting Edge Length (Decimal Inch) | 0.4331 |
| ISO Number | RA590127R38S11M |
| Complete Insert Compatibility | R590-1105.. |
| Toolholder Material | Steel |
