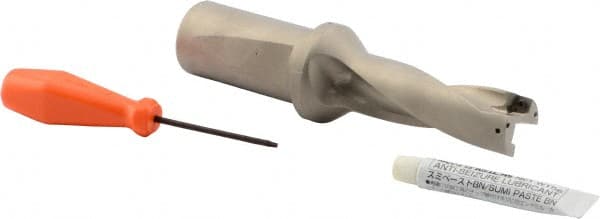

Sumitomo - 3.118" Max Drill Depth, 3xD, 1" Diam, Indexable Insert Drill - 1-1/4" Shank Diam, Whistle Notch Shank
Item #: 40357592
Brand: Sumitomo
Model #: 2A00W2Q
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (Inch) | 1 |
| Drill Diameter (Decimal Inch) | 1.0000 |
| Maximum Drill Depth (Decimal Inch) | 3.1180 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.2953x0.1378 |
| Overall Length/Projection (Decimal Inch) | 6.3270 |
| Insert Compatibility | WDXT 073506 |
| Body Length (Decimal Inch) | 3.8270 |
| Shank Length (Decimal Inch) | 2.5000 |
