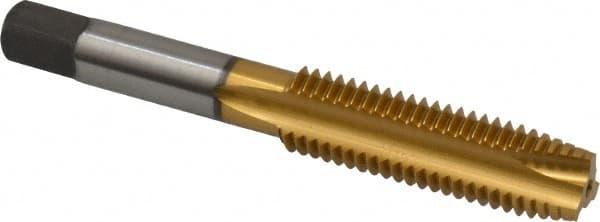

Kennametal - M12x1.75 Metric Coarse, 3 Flute, TiN Finish, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 3-3/8" OAL, 1.656" Thread Length, 0.367" Shank Diam, 6H Class of Fit, Series 2351T
Item #: 40390890
Brand: Kennametal
Model #: 1545225
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M12x1.75 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D6 |
| Finish/Coating | TiN |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.3800 |
| Overall Length (Inch) | 3-3/8 |
| Oversize | No |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 1.6560 |
| Series/List | 2351T |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Material Application | Cast Iron; Stainless Steel; Steel |
