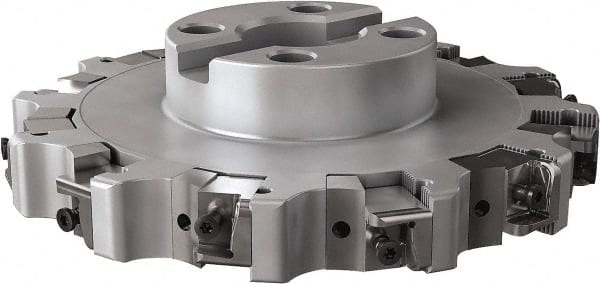

Seco - Shell Mount Connection, 1.024" Cutting Width, 2.209" Depth of Cut, 8" Cutter Diam, 1-1/2" Hole Diam, 6 Tooth Indexable Slotting Cutter - R335.25 Toolholder, XNHQ, LNHQ Insert, Right Hand Cutting Direction
Item #: 40468803
Brand: Seco
Model #: 16358
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 26.00 |
| Cutting Width (Decimal Inch) | 1.0240 |
| Cutting Width (Inch) | 1.0240 |
| Maximum Depth of Cut (Decimal Inch) | 2.2090 |
| Cutter Diameter (Inch) | 8 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 6 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | XNHQ; LNHQ |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Radius | Yes |
