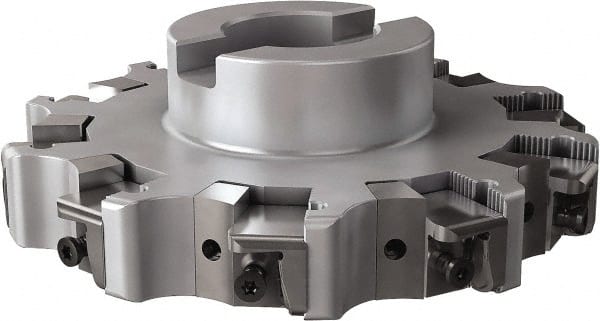

Seco - Shell Mount Connection, 0.63" Cutting Width, 1.579" Depth of Cut, 6" Cutter Diam, 1-1/2" Hole Diam, 10 Tooth Indexable Slotting Cutter - R335.25 Toolholder, XNHQ, LNHQ Insert, Right Hand Cutting Direction
Item #: 40468811
Brand: Seco
Model #: 16214
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6300 |
| Cutting Width (Inch) | 0.6300 |
| Maximum Depth of Cut (Decimal Inch) | 1.5790 |
| Cutter Diameter (Inch) | 6 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 10 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | XNHQ; LNHQ |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Radius | Yes |
