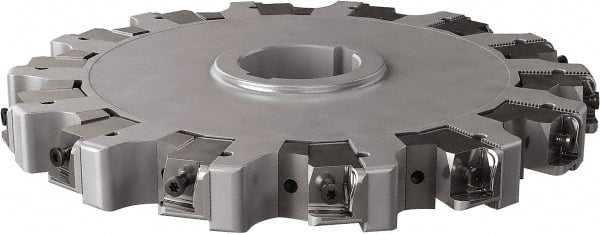

Seco - Arbor Hole Connection, 0.63" Cutting Width, 3.476" Depth of Cut, 250mm Cutter Diam, 1.9685" Hole Diam, 14 Tooth Indexable Slotting Cutter - 335.25 Toolholder, XNHQ, LNHQ Insert, Right Hand Cutting Direction
Item #: 40468886
Brand: Seco
Model #: 85599
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6300 |
| Cutting Width (Inch) | 0.6300 |
| Maximum Depth of Cut (Decimal Inch) | 3.4760 |
| Cutter Diameter (mm) | 250.00 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Inch) | 1.9685 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 14 |
| Toolholder Style | 335.25 |
| Series | 335.25 |
| Insert Style | XNHQ; LNHQ |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Radius | Yes |
