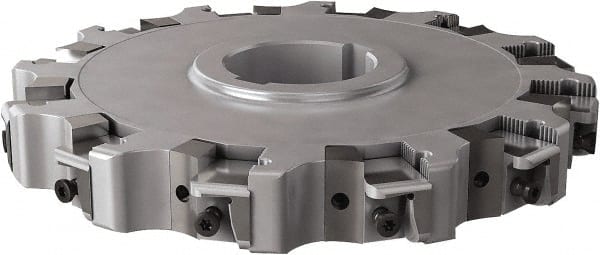

Seco - Arbor Hole Connection, 0.63" Cutting Width, 2.413" Depth of Cut, 8" Cutter Diam, 2" Hole Diam, 12 Tooth Indexable Slotting Cutter - 335.25 Toolholder, XNHQ, LNHQ Insert, Right Hand Cutting Direction
Item #: 40469017
Brand: Seco
Model #: 16395
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6300 |
| Cutting Width (Inch) | 0.6300 |
| Maximum Depth of Cut (Decimal Inch) | 2.4130 |
| Cutter Diameter (Inch) | 8 |
| Hole Diameter (mm) | 50.80 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 12 |
| Toolholder Style | 335.25 |
| Series | 335.25 |
| Insert Style | XNHQ; LNHQ |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Radius | Yes |
