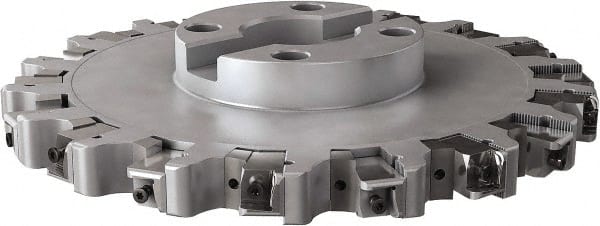

Seco - Shell Mount Connection, 1.26" Cutting Width, 3.402" Depth of Cut, 12" Cutter Diam, 2-1/2" Hole Diam, 9 Tooth Indexable Slotting Cutter - R335.25 Toolholder, XNHQ, LNHQ Insert, Right Hand Cutting Direction
Item #: 40469033
Brand: Seco
Model #: 16380
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 32.00 |
| Cutting Width (Decimal Inch) | 1.2600 |
| Cutting Width (Inch) | 1.2600 |
| Maximum Depth of Cut (Decimal Inch) | 3.4020 |
| Cutter Diameter (Inch) | 12 |
| Hole Diameter (mm) | 63.50 |
| Hole Diameter (Inch) | 2-1/2 |
| Hole Diameter (Decimal Inch) | 2.5000 |
| Number of Teeth | 9 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | XNHQ; LNHQ |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 18 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Radius | Yes |
