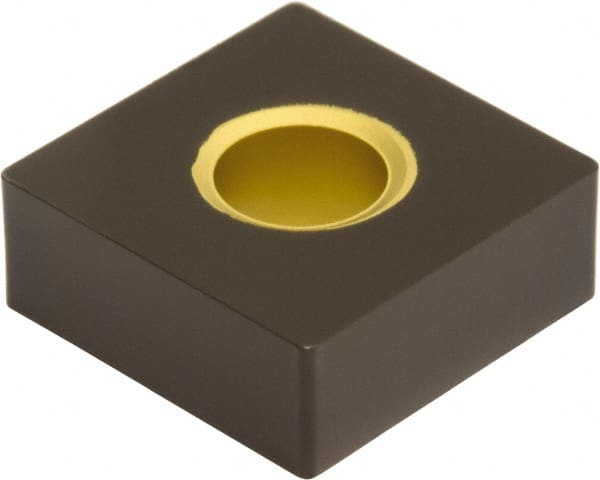

Hertel - SNMA322 NONE Grade HC305T Carbide Turning Insert - Al2O3 Finish, 90° Square, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 40497117
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMA |
| Insert Size | 322 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | HC305T |
| Coating | Al2O3 |
| Material Grade | HC305T |
| Chip Breaker | None |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | SNMA322 |
| Relief Angle | 0 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| Shape | Square |
