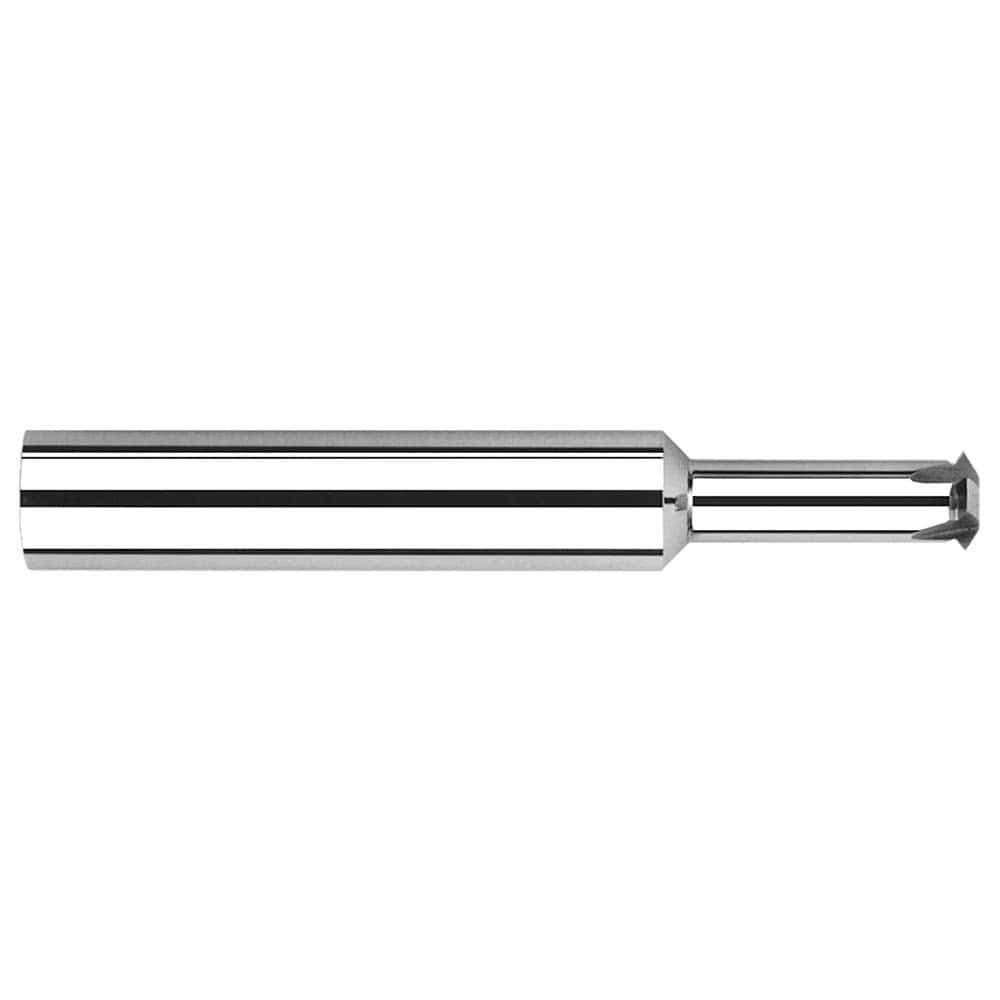

Harvey Tool - 0 TPI, Internal/External Single Profile Thread Mill
Item #: 40542524
Brand: Harvey Tool
Model #: 54204
Product Specifications
| Maximum Threads Per Inch | 72 |
| Minimum Threads Per Inch | 8 |
| Thread Type | Internal/External |
| Minimum Nominal Diameter (Inch) | #1 |
| Cutting Diameter (Inch) | 0.0540 |
| Shank Diameter (Inch) | 1/8 |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 0.0320 |
| Neck Length (Decimal Inch) | 0.2500 |
| Thread Size | #1-8 - #1-72 |
| Overall Length (Decimal Inch) | 1.50000 |
| Overall Length (Inch) | 1-1/2 |
| Thread Standard | UN 60 Degrees |
| Finish/Coating | Uncoated |
