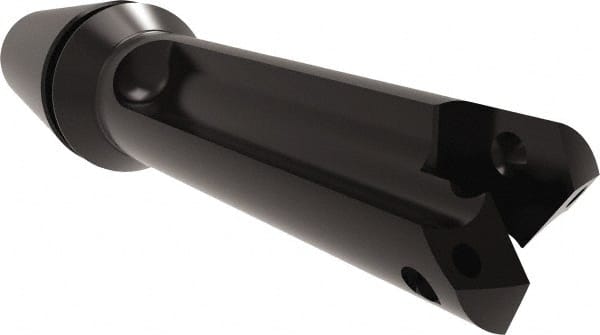

Allied Machine and Engineering - Series 0, 33/64 to 11/16" Diam, ER16 ER Collet, Straight Flute Spade Drill - 1-3/8" Max Depth, 1-57/64" Body Length, 3-5/64" OAL, Short Length, Through Coolant
Item #: 40554628
Brand: Allied Machine and Engineering
Model #: 21000S-16ER
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 0 |
| Minimum Drill Diameter (Inch) | 33/64 |
| Minimum Drill Diameter (Decimal Inch) | 0.5156 |
| Maximum Drill Diameter (Inch) | 11/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.6875 |
| Shank Type | ER Collet |
| Shank Taper Size | ER16 |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 3-5/64 |
| Overall Length (Decimal Inch) | 3.0781 |
| Maximum Drill Depth (Inch) | 1-3/8 |
| Maximum Drill Depth (Decimal Inch) | 1.3750 |
| Flute Type | Straight Flute |
| Body Length (Inch) | 1-57/64 |
| Body Length (Decimal Inch) | 1.8906 |
| Through Coolant | Yes |
