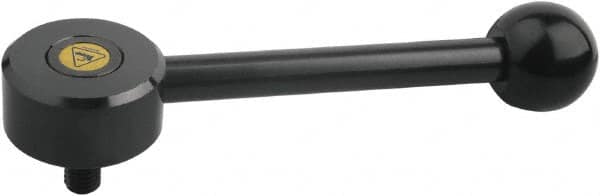

KIPP - M10, Steel Threaded Stud Adjustable Clamping Handle - 151.5mm OAL, 26mm High - Exact Tooling

KIPP - M10, Steel Threaded Stud Adjustable Clamping Handle - 151.5mm OAL, 26mm High


Item #: 40652851
Brand: KIPP
Model #: K0114.2101X60
Exact Tooling IR#: 04

Product Specifications
Connection Type Threaded Stud
Thread Size M10
Overall Length (mm) 151.50
Handle Material Steel
Components Finish/Coating Black Oxide
Handle Finish/Coating Black Oxide
Components Material Steel
Handle Type Adjustable Tension Lever Low-Profile
Handle Radius Length (Decimal Inch) 5.1575
Handle Arm Style Plastic Ball Knob
Body Height (Decimal Inch) 0.8661
Body Diameter (mm) 41.00
Base Height (Decimal Inch) 0.0787
Base Diameter (Decimal Inch) 0.7480
Handle Arm Angle Straight (0 )
Body Height (mm) 22.00
Body Diameter (Decimal Inch) 1.6142
Base Height (mm) 2.00
Base Diameter (mm) 19.00
Thread Length (Decimal Inch) 2.3622
Overall Height (mm) 26.00
Overall Height (Decimal Inch) 1.0236
Thread Length (mm) 60.00
Handle Radius Length (mm) 131.00
Handle Color Black
$ 40.73
