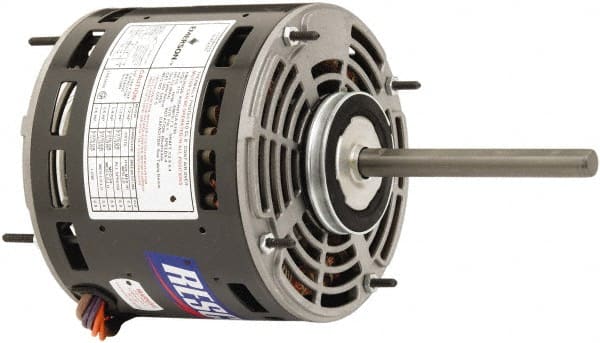

US Motors - 1 Max hp, 1,075 Max RPM, Permanent Split Cap Electric AC DC Motor - 115 V Input, Single Phase, 48Y Frame, 1/2" Shaft Diam, Band Mount, OAO Enclosure
Item #: 40698243
Brand: US Motors
Model #: 6452
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Permanent Split Cap |
| Type of Enclosure | OAO |
| Maximum HorsePower | 1 |
| Minimum Horsepower | 1 |
| Phase | Single |
| Input Voltage | 115 |
| Frame Size | 48Y |
| Full Load Amperage | 11.2 |
| Mount Type | Band |
| Bearing Type | Ball |
| Shaft Diameter (Decimal Inch) | 0.5000 |
| Service Factor Rating | 1 |
| Insulation Class | B |
| Maximum RPM | 1075 |
| PSC Code | 6105 |
