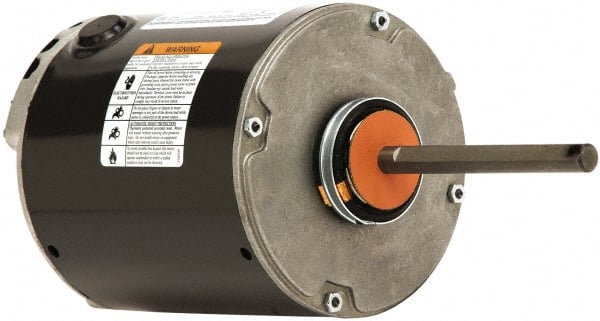

US Motors - 1 Max hp, 850 Max RPM, Polyphase Electric AC DC Motor - 575 V Input, Single Phase, 56YZ Frame, 5/8" Shaft Diam, Belly Band Mount, ODP Enclosure
Item #: 40698268
Brand: US Motors
Model #: 1829
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Polyphase |
| Type of Enclosure | ODP |
| Maximum HorsePower | 1 |
| Minimum Horsepower | 1 |
| Phase | Single |
| Input Voltage | 575 |
| Frame Size | 56YZ |
| Full Load Amperage | 2.1 |
| Mount Type | Belly Band |
| Bearing Type | Ball |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Service Factor Rating | 1.00 |
| Insulation Class | B |
| Maximum RPM | 850 |
| PSC Code | 6105 |
