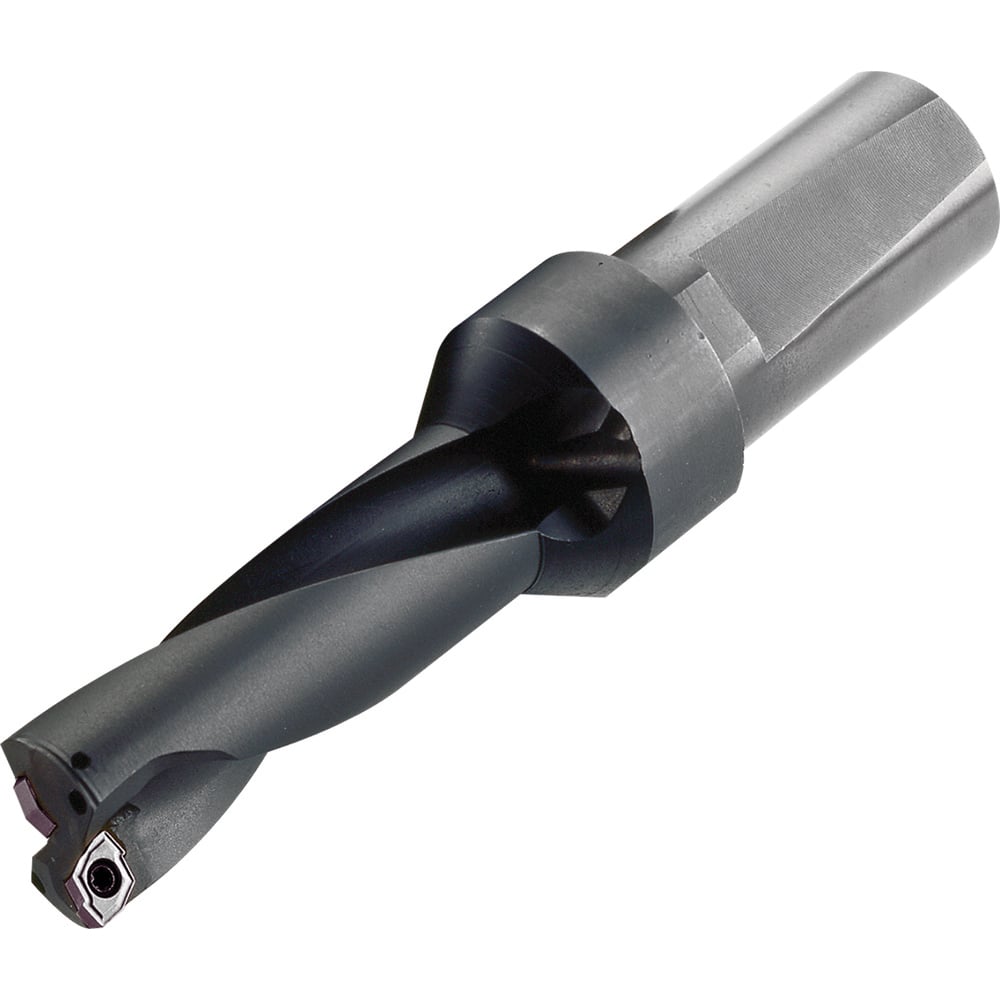

Kyocera - Indexable Insert Drills; Drill Style: DRZ ; Drill Diameter (mm): 41.00 ; Maximum Drill Depth (mm): 122.94 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.25 ; Cutting Direction: Right Hand
Item #: 40713521
Brand: Kyocera
Model #: 8603948
Product Specifications
Indexable Insert Drills; Drill Style: DRZ ; Drill Diameter (mm): 41.00 ; Maximum Drill Depth (mm): 122.94 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.25 ; Cutting Direction: Right Hand
| Drill Style | DRZ |
| Drill Diameter (mm) | 41.00 |
| Maximum Drill Depth (mm) | 122.94 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.25 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 41.00 |
| Overall Length/Projection (mm) | 224.28 |
| Insert Compatibility | ZCMT |
| Flute Length (mm) | 122.94 |
| Body Length (mm) | 155.190 |
| Shank Length (Decimal Inch) | 2.7200 |
| Collar Diameter (mm) | 55.12 |
