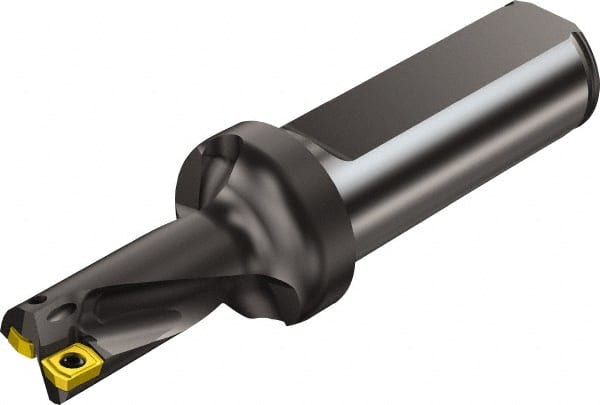

Sandvik Coromant - 2.15" Max Drill Depth, 2xD, 1" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 40741886
Brand: Sandvik Coromant
Model #: 5723818
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-02 |
| Drill Diameter (mm) | 25.40 |
| Drill Diameter (Inch) | 1 |
| Drill Diameter (Decimal Inch) | 1.0000 |
| Maximum Drill Depth (Decimal Inch) | 2.1500 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 3 |
| Insert Size (Decimal Inch) | 0.1181 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.0748 |
| Maximum Drill Diameter (mm) | 25.40 |
| Overall Length/Projection (mm) | 131.24 |
| Overall Length/Projection (Decimal Inch) | 5.1667 |
| Insert Compatibility (Outside or Peripheral) | 05P |
| Flute Length (mm) | 70.21 |
| Flute Length (Decimal Inch) | 2.7643 |
| Body Length (Decimal Inch) | 2.1800 |
| Body Length (mm) | 55.37 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Radius (Decimal Inch) | 0.5000 |
| Series | CoroDrill 880 |
