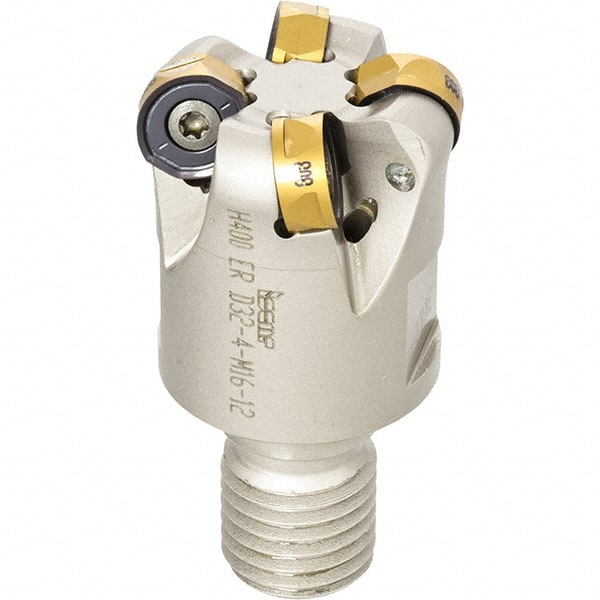

Iscar - 40mm Cut Diam, 8.7mm Max Depth of Cut, 35mm OAL, Indexable Copy End Mill - 5 Inserts, H400 RNHU 1205 Insert, M16 Modular Connection, Through Coolant
Item #: 40752131
Brand: Iscar
Model #: 3106269
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 8.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.3425 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 5 |
| Insert Style | H400 RNHU 1205 |
| Toolholder Style | H400 ER-M |
| Overall Length (mm) | 35.00 |
| Overall Length (Decimal Inch) | 1.3780 |
| Insert Holding Method | Screw |
| Through Coolant | Coolant Through |
| Modular Connection Size | M16 |
