Turning Insert: RCGT1003MOFN-27 AMZ, Carbide
Item #: 26287672
Brand: Ceratizit
Model #: 7026651400

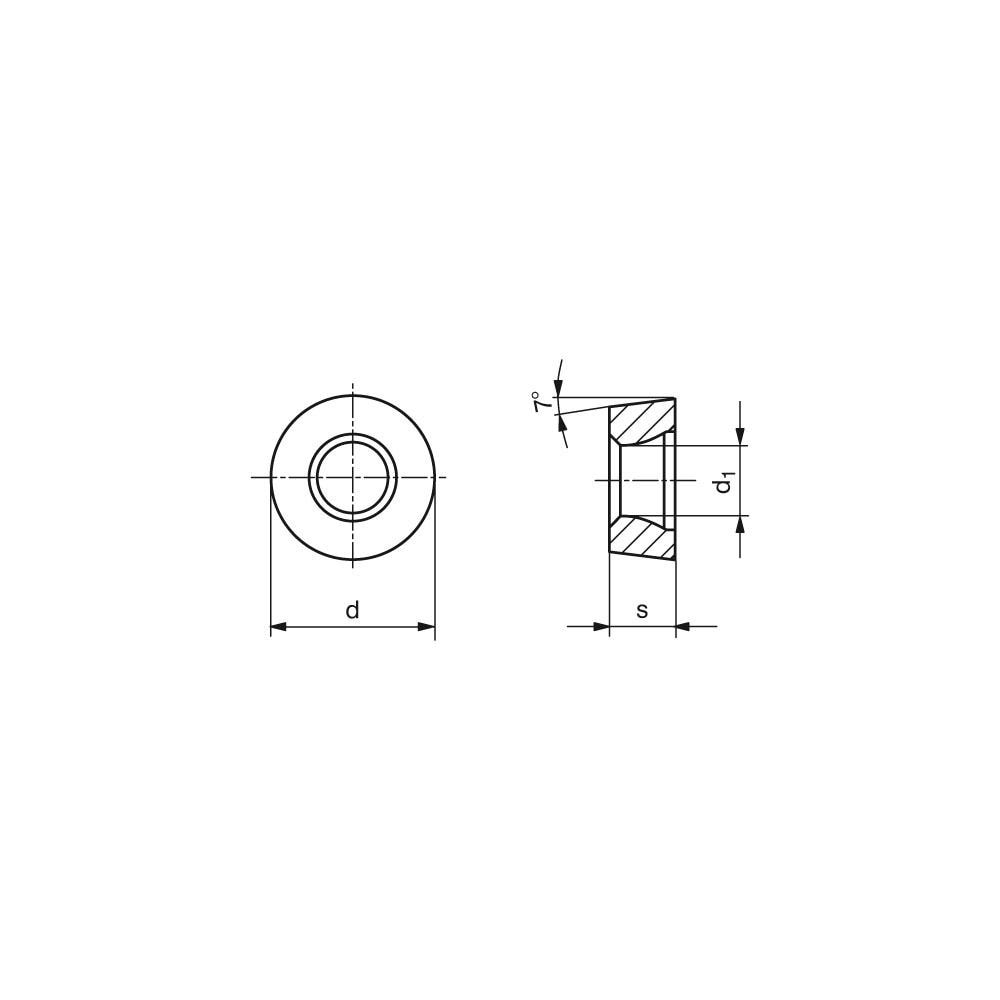

Product Specifications
| ANSI Insert Code | RCGT100300 |
| ISO Insert Code | RCGT100300 |
| Relief Angle | 7 |
| Insert Style | RCGT |
| Included Angle | 0 |
| Manufacturer Grade | AMZ |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | RCGT |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (Decimal Inch) | 0.1968 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Iso Code | RCGT 1003MOFN-27 AMZ |
| Chip Breaker | 27 |
| ANSI Size Code | 100300 |
| ISO Size Code | 100300 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1003 |
