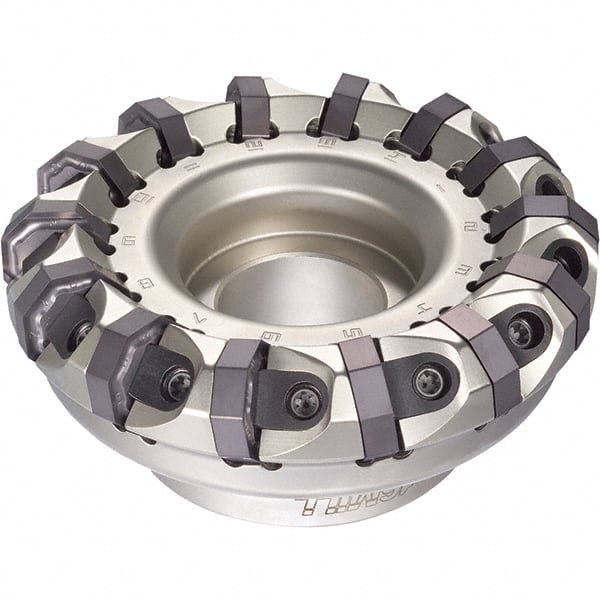

Iscar - 3.49" Cut Diam, 1" Arbor Hole, 0.217" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, ONH.. Insert, Right Hand Cut, 8 Flutes, Series 16Mill
Item #: 40788515
Brand: Iscar
Model #: 3181059
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.4900 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | ONH.. |
| Series | 16Mill |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | F45NM |
| Number of Flutes | 8 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.2170 |
| Maximum Insert Radius (Decimal Inch) | 0.0510 |
| Complete Insert Compatibility | ONHQ-TN; ONHU 0806-N-PL; ONHU 0806AN-W; ONHU/ONMU 080608 AN-N-HP; ONHU/ONMU-08-TN-MM; ONHU/ONMU-08-TN/HL |
