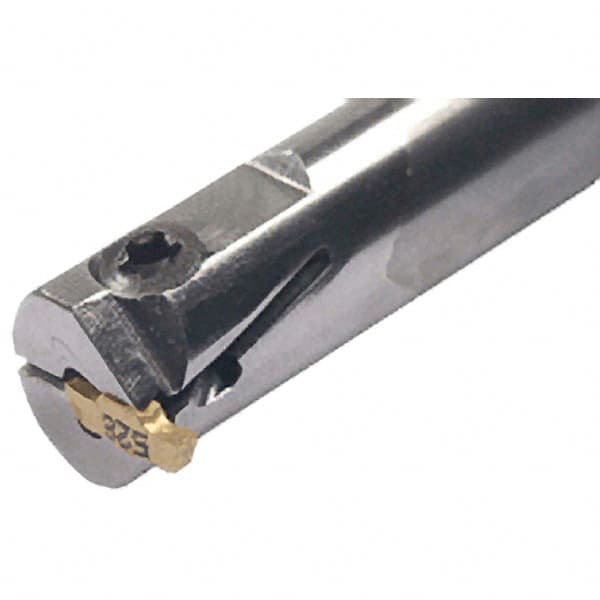

Iscar - GEHIM, Internal, Right Hand, 0.098" Max Depth of Cut, 0.031 to 0.075" Groove Width, Indexable Grooving Tool Holder - GEPI Insert Compatibility, 3/8" Shank Width, 5" OAL, Through Coolant
Item #: 41028218
Brand: Iscar
Model #: 2801315
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Maximum Groove Width (Decimal Inch) | 0.0750 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | GEHIM |
| Insert Compatibility | GEPI |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Series | Fix-Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Threading; Turning |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 0.4920 |
| Center to Cutting Edge (Decimal Inch) | 0.3000 |
| Complete Insert Compatibility | GEPI 0.80-0.00RX; GEPI 1.00-0.10; GEPI 1.00-0.10 LX; GEPI 1.00-0.10 RX; GEPI 1.00-0.50; GEPI 1.04-0.00; GEPI 1.20-0.00; GEPI 1.25-0.10; GEPI 1.57-0.15RX; GEPI 1.85-0.10; GEPI 2.5-MT0.05; GEPI 2.5-WT0.05 |
