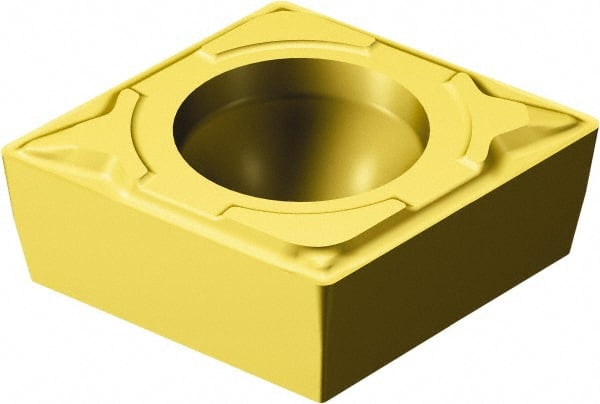

Sandvik Coromant - CCMT32.52 MF Grade 2015 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 41064726
Brand: Sandvik Coromant
Model #: 5724271
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Length (mm) | 8.87 |
| Length (Decimal Inch) | 0.3493 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 2015 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | MF |
| Insert Length (Decimal Inch) | 0.3493 |
| OverallLength (mm) | 9.67 |
| Overall Length (Decimal Inch) | 0.3808 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | CCMT 09 T3 08-MF 2015 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
