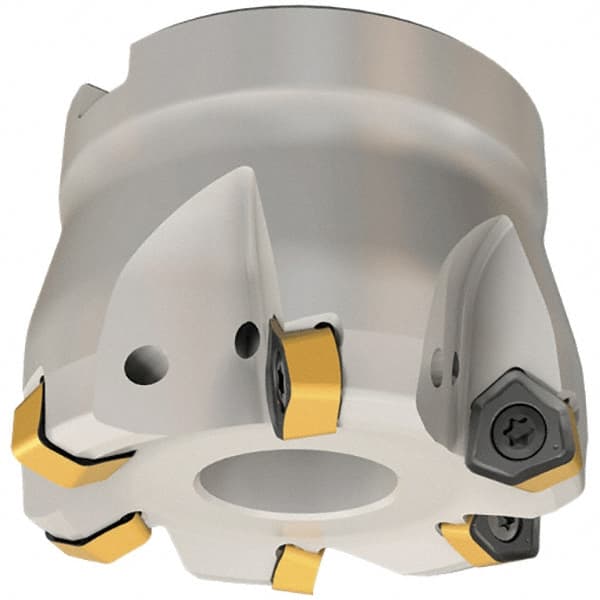

Iscar - 4" Cut Diam, 1-1/2" Arbor Hole, 0.08" Max Depth of Cut, 17° Indexable Chamfer & Angle Face Mill - 7 Inserts, H600 WXCU 0806 Insert, Right Hand Cut, 7 Flutes, Series Helido
Item #: 41142159
Brand: Iscar
Model #: 3105249
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 17 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | H600 WXCU 0806 |
| Series | Helido |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | FF FWX-08 |
| Number of Flutes | 7 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.3150 |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Complete Insert Compatibility | H600 WXCU 080612HP; H600 WXCU 080612T; H600 WXCU 080616RM |
