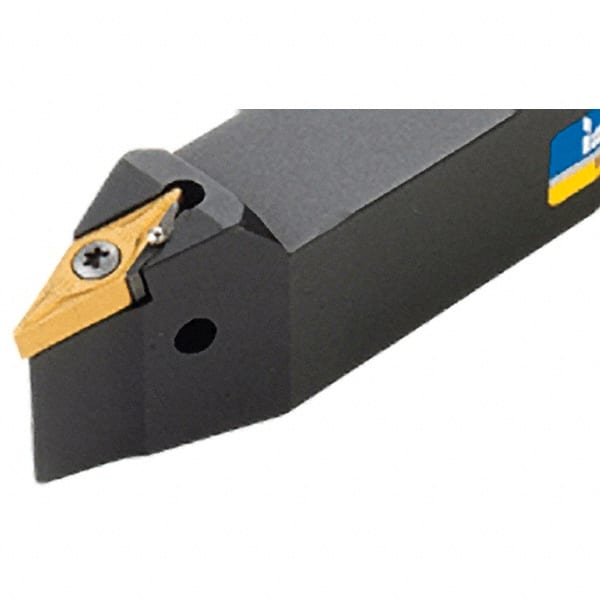

Iscar - VN.. 12T3.., 72.5° Lead Angle SVVN External Neutral Indexable Profiling Toolholder - 25mm Shank Height x 25mm Shank Width, 150mm Long
Item #: 41162504
Brand: Iscar
Model #: 3601913
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Neutral |
| Rake | Negative |
| Insert Compatibility | VN.. 12T3.. |
| Toolholder Style | SVVN |
| Series | Isoturn |
| Through Coolant | No |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Overall Length (mm) | 150.00 |
| Insert Holding Method | Screw |
| Rake Angle | -14 |
| Lead Angle | 72.5 |
| Center to Cutting Edge (mm) | 12.50 |
| Head Length (mm) | 26.00 |
| Insert Inscribed Circle (mm) | 7.15 |
| Complete Insert Compatibility | VNGG 12T302-NF; VNGG 12T304-NF; VNMG 12T302-NF; VNMG 12T302-SF; VNMG 12T304-NF; VNMG 12T304-SF; VNMG 12T308-NF; VNMM 12T304-PP; VNMM 12T308-PP |
