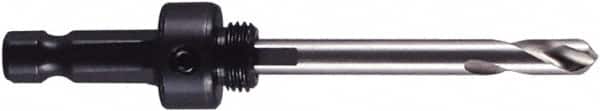

M.K. MORSE - 9/16 to 1-3/16" Tool Diam Compatibility, Hex Shank, High Speed Steel Integral Pilot Drill, Hole Cutting Tool Arbor - 3/8" Min Chuck, Hex Shank Cross Section, Threaded Shank Attachment, For 9/16 to 1-3/16" Hole Saws
Item #: 41295056
Brand: M.K. MORSE
Model #: 139014%XA0
Exact Tooling IR#: 04
Features and Benefits
Hex shanks are used higher speed machining operations due to its angled shape. They are constructed of six sides and fit into a quick change chuck. They are commmonly made of a 1/4" shank.
| Product Specifications | |
|---|---|
| Tool Compatibility | 9/16 - 1-3/16 inch Hole Saws |
| Minimum Tool Diameter Compatibility (Inch) | 9/16 |
| Maximum Tool Diameter Compatibility (Inch) | 1-3/16 |
| Shank Type | Hex |
| Shank Cross-Section Shape | Hex |
| Integral Pilot Type | Pilot Drill |
| Minimum Chuck Size (Inch) | 3/8 |
| Minimum Chuck Size (mm) | 10.00 |
| Attachment Method | Threaded Shank |
| Integral Pilot Material | High Speed Steel |
| Arbor Material | Steel |
| Thread Size | 1/2-20 |
| Weldon Flat | No |
| Maximum Tool Diameter Compatibility (Decimal Inch) | 1-3/16 |
| Minimum Tool Diameter Compatibility (Decimal Inch) | 1-1/4 |
| Minimum Chuck Size (Decimal Inch) | 3/8 |
| Shank Size (Decimal Inch) | 3/8 |
