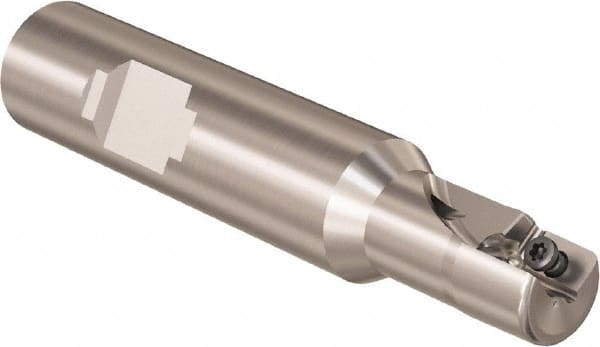

Seco - 63mm Cut Diam, 120mm Max Depth of Cut, 165mm OAL, Indexable Square Shoulder Helical End Mill - CAT 50 Taper Shank, 90° Lead Angle, Through Coolant, Series R215.59
Item #: 41296302
Brand: Seco
Model #: 07718
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Shank Type | Taper Shank |
| Shank Taper Size | CAT 50 |
| Overall Length/Projection (mm) | 165.00 |
| Lead Angle | 90 |
| Series | R215.59 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 120.00 |
| Number of Cutter Inserts | 28 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | R215.59 |
| Number of Flutes | 2 |
| Weldon Flat | No |
| Maximum RPM | 7400 |
| Toolholder Material | Steel |
