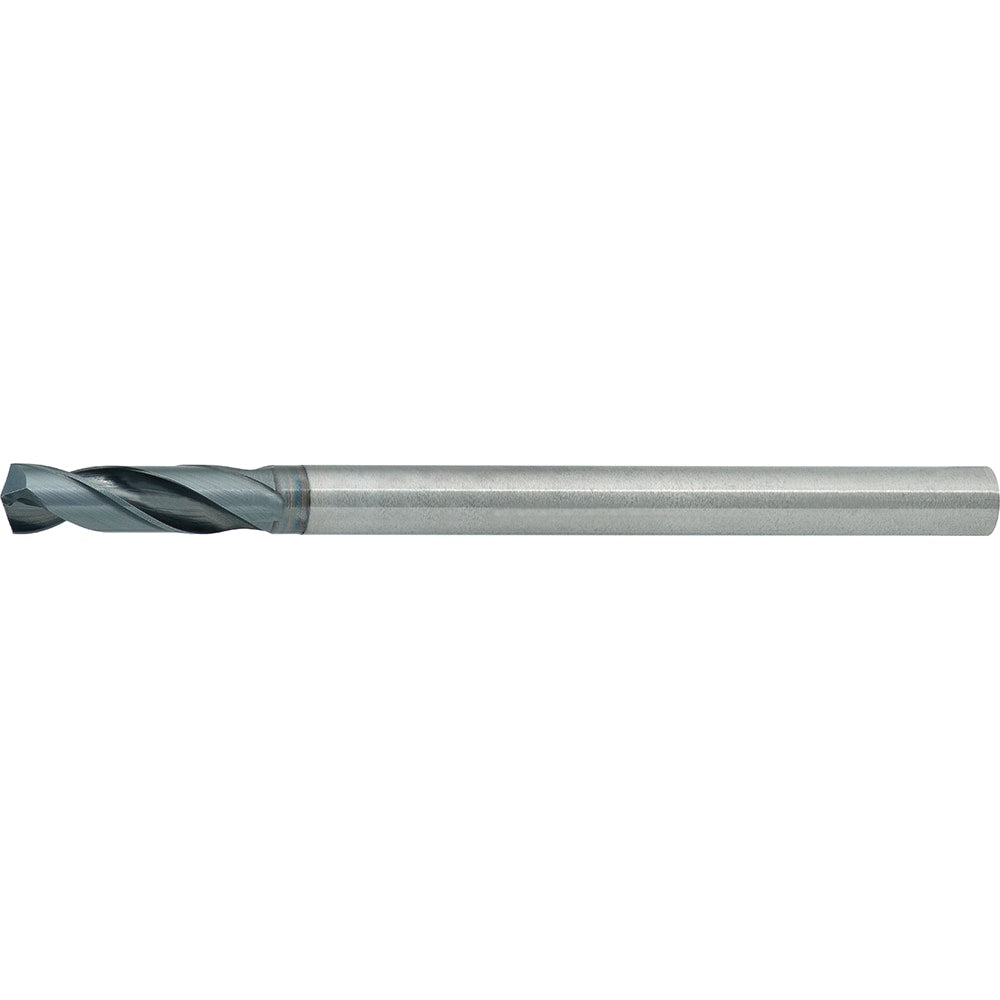

Micro Drill Bit: 2.50 mm Dia, (0.0984"), 135 deg, Solid Carbide
Item #: 04941365
Brand: Mitsubishi
Model #: 10642177
Product Specifications
| Drill Bit Size (mm) | 2.50 |
| Drill Bit Size (Decimal Inch) | 0.0984 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.8031 |
| Flute Length (mm) | 20.40 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 135 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 10.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.3937 |
| Number Of Flutes | 2 |
| Series | DWAE |
| Overall Length (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 50.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Carbon Steel; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Shank Length (Decimal Inch) | 1.2165 |
| Shank Length (mm) | 30.90 |
| Flute By Diameter Ratio | 4xD |
| UNSPSC Code | 23241600 |
