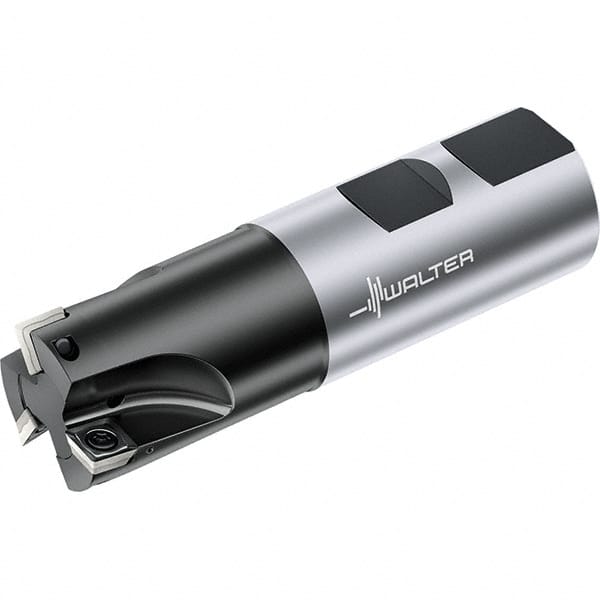

Walter - 1-1/4" Cut Diam, 8.4mm Max Depth of Cut, 1-1/4" Shank Diam, 94mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 0° Lead Angle, Through Coolant, Series M4132-UW
Item #: 41374265
Brand: Walter
Model #: 6556158
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (mm) | 94.00 |
| Overall Length/Projection (Decimal Inch) | 3.7010 |
| Lead Angle | 0 |
| Series | M4132-UW |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.331 |
| Number of Cutter Inserts | 3 |
| Number of Flutes | 3 |
| Maximum RPM | 33800 |
| Toolholder Material | Steel |
