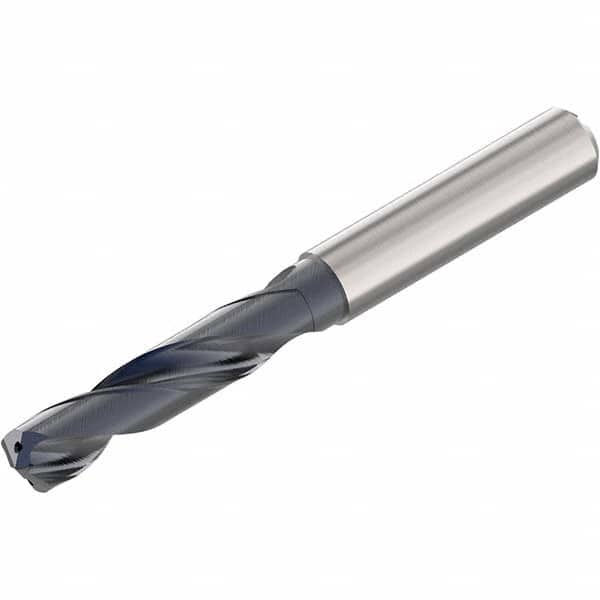

Seco - 11.5mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 96223839
Brand: Seco
Model #: 02898353
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4528 |
| Drill Bit Size (mm) | 11.50 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 55.00 |
| Overall Length (mm) | 102.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 12.00 |
| Maximum Drilling Depth (mm) | 40.00 |
| Shank Length (mm) | 45.00 |
| Threaded Shank | No |
| Number of Flutes | 2 |
