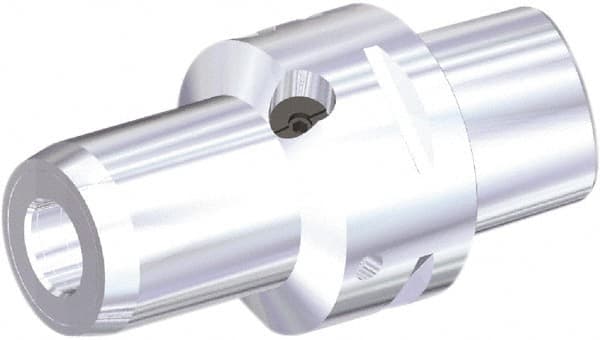

Kennametal - PSC50 Modular Connection, 14mm Hole Diam, Hydraulic Tool Holder/Chuck - 33.9mm Nose Diam, 75mm Projection, 36mm Clamp Depth, Through Coolant
Item #: 41455874
Brand: Kennametal
Model #: 6338149
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | PSC50 |
| Hole Diameter (Decimal Inch) | 0.5510 |
| Hole Diameter (mm) | 14.00 |
| Nose Diameter (Decimal Inch) | 1.3350 |
| Nose Diameter (mm) | 33.90 |
| Projection (Decimal Inch) | 2.9530 |
| Projection (mm) | 75.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 36.00 |
| Clamping Depth (Decimal Inch) | 1.4170 |
| Overall Length (mm) | 105.00 |
| Overall Length (Decimal Inch) | 4.1340 |
