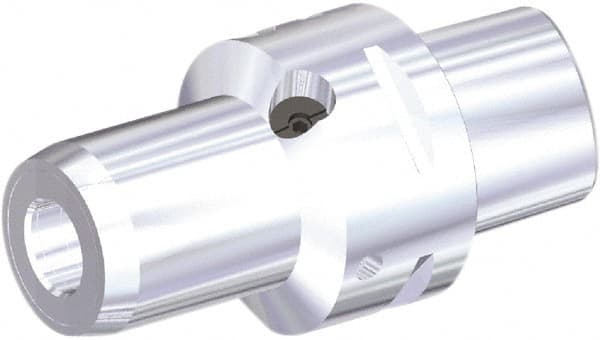

Kennametal - PSC50 Modular Connection, 16mm Hole Diam, Hydraulic Tool Holder/Chuck - 37.9mm Nose Diam, 80mm Projection, 39mm Clamp Depth, Through Coolant
Item #: 41455908
Brand: Kennametal
Model #: 6338145
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | PSC50 |
| Hole Diameter (Decimal Inch) | 0.6300 |
| Hole Diameter (mm) | 16.00 |
| Nose Diameter (Decimal Inch) | 1.4920 |
| Nose Diameter (mm) | 37.90 |
| Projection (Decimal Inch) | 3.1500 |
| Projection (mm) | 80.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 39.00 |
| Clamping Depth (Decimal Inch) | 1.5350 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3310 |
