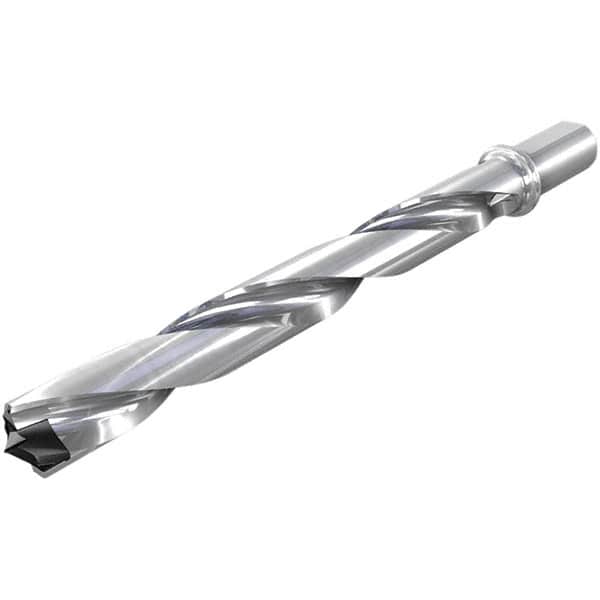

Iscar - 1.535 to 1.575" Diam, 8xD, 12.28" Max Drill Depth, 1-1/4" Shank Diam, 16.41" OAL, Replaceable Tip Drill - HFP-IQ Insert, 39 Seat Size, DFN Toolholder, Series ChamIOdrill
Item #: 41466491
Brand: Iscar
Model #: 3260031
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (Decimal Inch) | 1.5350 |
| Maximum Drill Diameter (Decimal Inch) | 1.5750 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 12.2800 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 39 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (Decimal Inch) | 0.3320 |
| Flute Length (Decimal Inch) | 1.5750 |
| Body Length (Decimal Inch) | 14.0500 |
| Overall Length (Decimal Inch) | 16.4100 |
| Shank Length (Decimal Inch) | 2.3600 |
