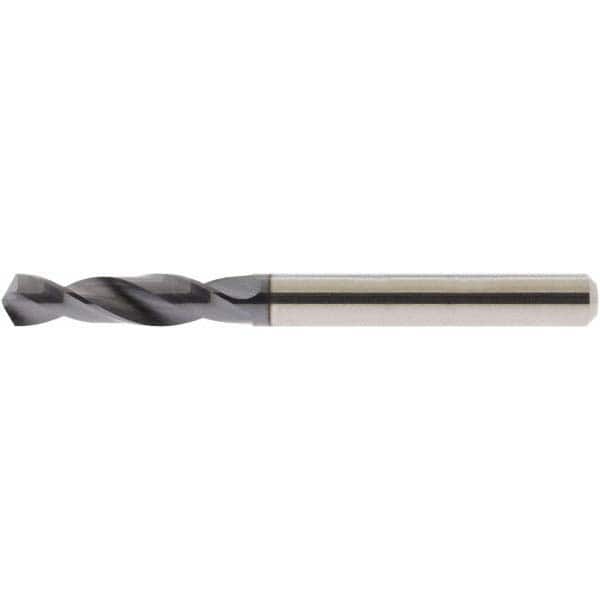

Screw Machine Length Drill Bit: 0.1142″ Dia, 118 °, Solid Carbide AlTiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 41582503
Brand: Accupro
Model #: DH429029
Product Specifications
| Drill Bit Size (mm) | 2.90 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN |
| Drill Point Angle | 118 |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1142 |
| Drill Bit Size (Decimal Inch) | 0.1142 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8110 |
| Shank Diameter (mm) | 2.90 |
| Flute Length (mm) | 16.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
