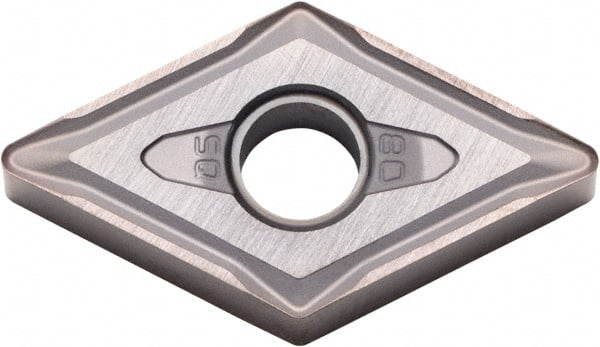

Kyocera - DNMG433 Grade PR015S Carbide Turning Insert - Megacoat Hard Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 41606732
Brand: Kyocera
Model #: 8858311
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | PR015S |
| Coating | Megacoat Hard |
| ISO Number | DNMG150412SQPR015S |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | S |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
