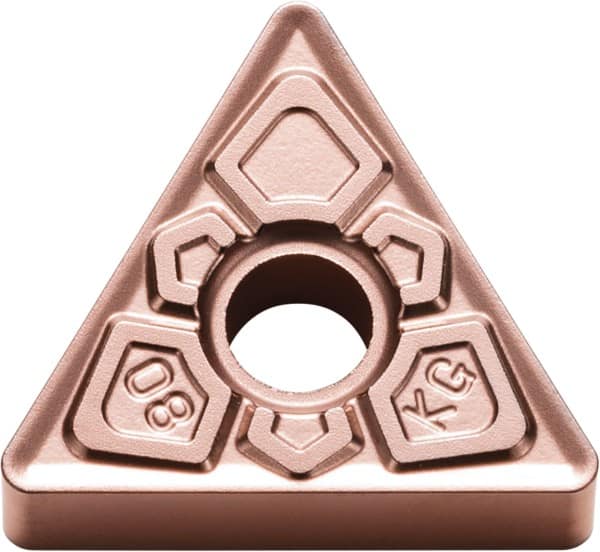

Kyocera - TNMG331 KG Grade CA315 Carbide Turning Insert - TiCN/Al2O3 Finish, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 41609975
Brand: Kyocera
Model #: 8848461
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | CA315 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | KG |
| ISO Number | TNMG160404KG |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | K |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | CA3 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
