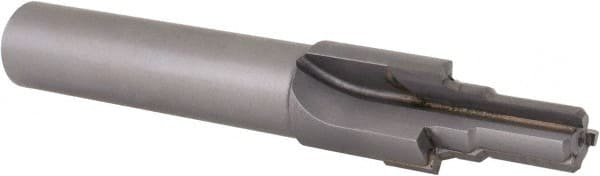

Scientific Cutting Tools - Porting Tools Pilot Type: Reamer Port Thread Size (Decimal Inch): 0.3750-24
Item #: 41201609
Brand: Scientific Cutting Tools
Model #: RPT-5
Features and Benefits
Carbide-tipped cuts faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Product Specifications
Porting Tools; Pilot Type: Reamer ; Port Thread Size (Decimal Inch): 0.3750-24 ; Port Thread Size (Inch): 3/8-24 ; Tool Material: Carbide-Tipped ; Tube Dash Number: 5.000 ; Tube Outside Diameter Compatibility (Decimal Inch): 0.313
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 0.3750-24 |
| Port Thread Size (Inch) | 3/8-24 |
| Tool Material | Carbide-Tipped |
| Tube Dash Number | 5.000 |
| Tube Outside Diameter Compatibility (Decimal Inch) | 0.313 |
| Tube Outside Diameter Compatibility (Inch) | 5/16 |
| Minimum Pilot Diameter (Decimal Inch) | 0.3370 |
| Maximum Pilot Diameter (Decimal Inch) | 0.4020 |
| Spotface Diameter (Decimal Inch) | 0.6020 |
| Pilot Length (Decimal Inch) | 0.4265 |
| Identification Groove | No |
| Workpiece Compatibility | Tubes |
| Finish/Coating | Bright |
| Head Length (Decimal Inch) | 1.4800 |
| Overall Length (Decimal Inch) | 3.4800 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Length (Decimal Inch) | 2.0000 |
| Seal Angle | 21 |
| Thread Type | UNJF |
| Flute Type | Straight |
| Number of Flutes | 3 |
