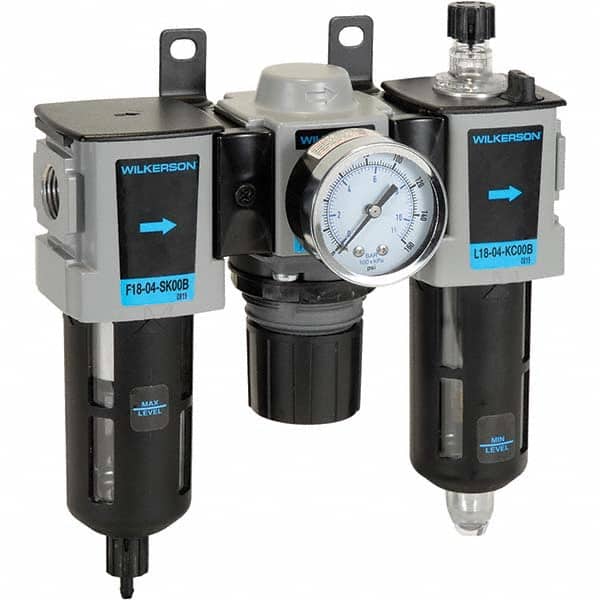

Wilkerson - Filter, Regulator & Lubricator (FRL) Units Configuration: 3 Pc. Filter-Regulator-Lubricator Body Type: Compact
Item #: 11760337
Brand: Wilkerson
Model #: C18-04-FKG0B
Product Specifications
Filter, Regulator & Lubricator (FRL) Units; Configuration: 3 Pc. Filter-Regulator-Lubricator ; Body Type: Compact ; Port Size NPT: 1/2 ; Maximum Supply Pressure (psi): 150 ; Height (Inch): 9.03 ; Width (Decimal Inch): 7.8000
| Configuration | 3 Pc. Filter-Regulator-Lubricator |
| Body Type | Compact |
| Port Size NPT | 1/2 |
| Maximum Supply Pressure (psi) | 150 |
| Height (Inch) | 9.03 |
| Width (Decimal Inch) | 7.8000 |
| Bowl Material | Polycarbonate |
| Standard Cubic Feet Per Minute | 85.00 |
| Includes Sight Glass | No |
| Bowl Guard | Yes |
| Brackets Included | Yes |
| Filter Bowl Capacity (oz.) | 1.7 |
| Drain Type | Manual Drain |
| Gauge Port Size (Inch) | 1/4 |
| Pressure Gauge Included | Yes |
| Minimum Temperature (F) | -13 |
| Maximum Temperature (F) | 125 |
| Micron Rating | 5µ |
| Series | 18 |
| Range | 0 - 125 |
| Modular Connection | Yes |
| Lubricator Bowl Capacity (oz.) | 4.0 |
