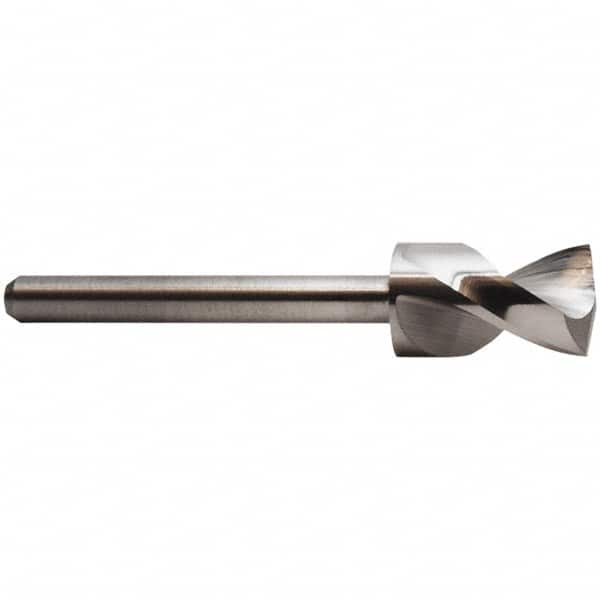

M.A. Ford - #12, 165° Drill Point, 3.175mm Shank Diam, Fast Spiral Circuit Board Drill Bit
Item #: 58207374
Brand: M.A. Ford
Model #: 30618900C
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high-speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 4.80 |
| Drill Bit Size (Wire) | #12 |
| Drill Bit Size (Decimal Inch) | 0.1890 |
| Drill Point Angle | 165 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Shank Diameter (mm) | 3.18 |
| Flute Length (mm) | 12.20 |
| Flute Length (Decimal Inch) | 0.4800 |
| Overall Length (mm) | 38.00 |
| Spiral Type | Fast Spiral |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.013 |
| Series/List | 306 |
| Additional Information | Modified Standard, Non-Returnable & Non-Cancelable |
| Shank Diameter (Decimal Inch) | 0.1250 |
