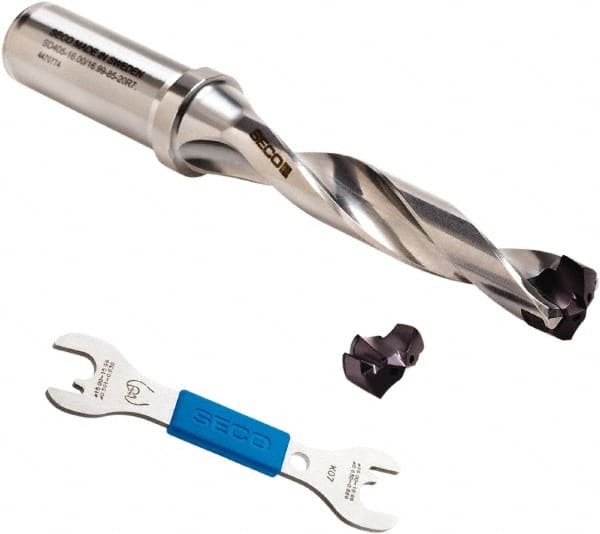

Seco - 19 to 20mm Diam, 5xD, 50mm Max Depth, 3/4" Shank Diam, 182mm OAL, Replaceable Tip Drill - SD400 Insert, 19.05 Seat Size, SD405 Toolholder, Series Crownloc Plus
Item #: 41701285
Brand: Seco
Model #: 03171441
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 19.00 |
| Maximum Drill Diameter (mm) | 20.00 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 50.00 |
| Shank Diameter (Inch) | 3/4 |
| Insert Style | SD400 |
| Insert Seat Size | 19.05 |
| Toolholder Style | SD405 |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 182.00 |
| Toolholder Material | Steel |
| Shank Length (mm) | 132.00 |
