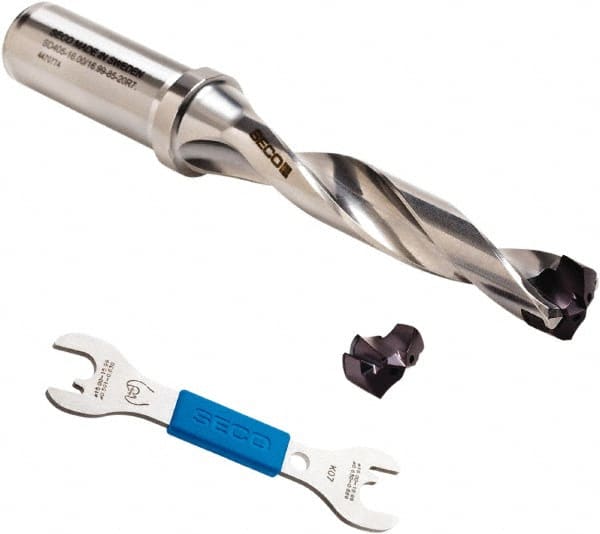

Seco - 15 to 16mm Diam, 3xD, 48mm Max Depth, 0.63" Shank Diam, 121.2mm OAL, Replaceable Tip Drill - SD400 Insert, 15.08 Seat Size, SD403 Toolholder, Series Crownloc Plus
Item #: 41704867
Brand: Seco
Model #: 03171425
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 15.00 |
| Maximum Drill Diameter (mm) | 16.00 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 48.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | SD400 |
| Insert Seat Size | 15.08 |
| Toolholder Style | SD403 |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 121.20 |
| Toolholder Material | Steel |
| Shank Length (mm) | 73.20 |
