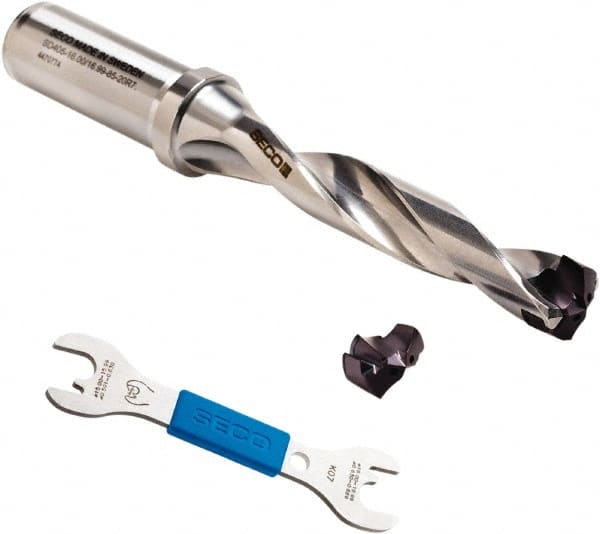

Seco - 15 to 16mm Diam, 5xD, 48mm Max Depth, 0.63" Shank Diam, 153.2mm OAL, Replaceable Tip Drill - SD400 Insert, 15.08 Seat Size, SD405 Toolholder, Series Crownloc Plus
Item #: 41706177
Brand: Seco
Model #: 03171436
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Crownloc Plus |
| Minimum Drill Diameter (mm) | 15.00 |
| Maximum Drill Diameter (mm) | 16.00 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 48.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | SD400 |
| Insert Seat Size | 15.08 |
| Toolholder Style | SD405 |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 153.20 |
| Toolholder Material | Steel |
| Shank Length (mm) | 105.20 |
