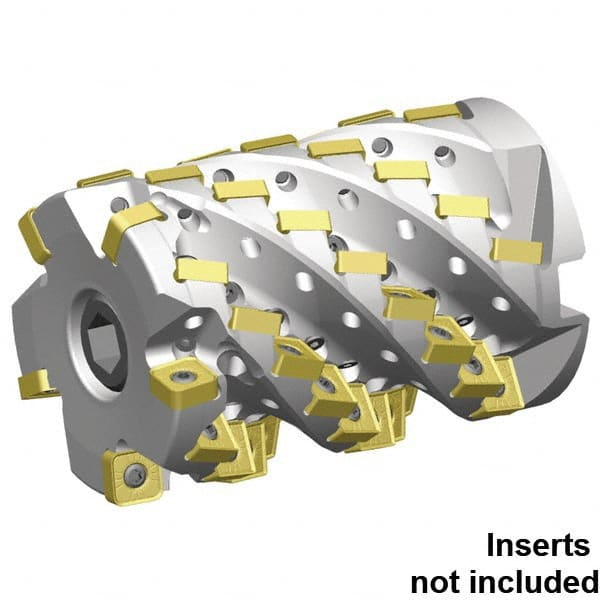

Kennametal - 15 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 2" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 3" High, SNHJ1206.. Insert Compatibility, Through Coolant, Series HARVI Ultra 8X
Item #: 41712936
Brand: Kennametal
Model #: 6518761
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 0 |
| Overall Height (Inch) | 3 |
| Insert Compatibility | SNHJ1206.. |
| Series | HARVI Ultra 8X |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 2.0033 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | SNHJ1206.. |
| Number of Flutes | 3 |
| Hub Diameter (Inch) | 1-3/4 |
| Maximum Body Diameter (Decimal Inch) | 1.8591 |
| Maximum RPM | 16290 |
| ISO Number | HU8X200S12S075ZU3AP200Z15 |
| Complete Insert Compatibility | SNHJ120624SNGDH; SNHJ120608SNGDH |
| Toolholder Material | Steel |
