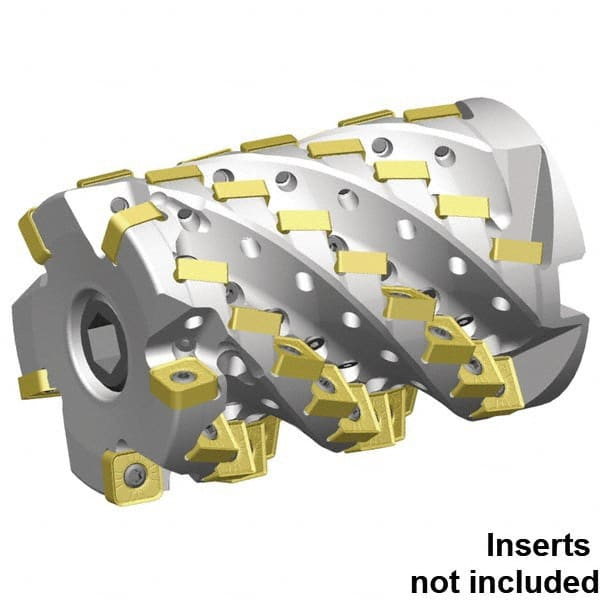

Kennametal - 50 Inserts, 3" Cut Diam, 1-1/4" Arbor Diam, 4.024" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 4-1/2" High, SNHJ1206.. Insert Compatibility, Through Coolant, Series HARVI Ultra 8X
Item #: 41713710
Brand: Kennametal
Model #: 6366489
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Lead Angle | 0 |
| Overall Height (Inch) | 4-1/2 |
| Insert Compatibility | SNHJ1206.. |
| Series | HARVI Ultra 8X |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 4.0240 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 50 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | SNHJ1206.. |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 72.61 |
| Hub Diameter (Decimal Inch) | 2.8590 |
| Maximum Body Diameter (Decimal Inch) | 2.8540 |
| Maximum RPM | 13300 |
| ISO Number | HU8X300S12S125ZU5AP402Z50 |
| Complete Insert Compatibility | SNHJ120624SNGDH; SNHJ120608SNGDH |
| Toolholder Material | Steel |
