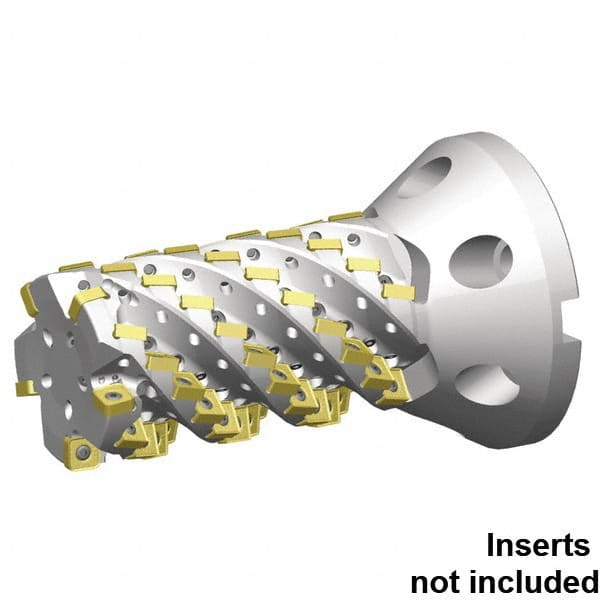

Kennametal - 115 Inserts, 3" Cut Diam, 46.2mm Arbor Diam, 9.2938" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 11-1/2" High, SNHJ1206.. Insert Compatibility, Through Coolant, Series HARVI Ultra 8X
Item #: 41715806
Brand: Kennametal
Model #: 6366547
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Arbor Hole Diameter (mm) | 46.20 |
| Lead Angle | 0 |
| Overall Height (Inch) | 11-1/2 |
| Insert Compatibility | SNHJ1206.. |
| Series | HARVI Ultra 8X |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 9.2938 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 115 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | SNHJ1206.. |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 2.8810 |
| Maximum RPM | 13300 |
| ISO Number | HU8X300S12F462ZU5AP929Z115 |
| Complete Insert Compatibility | SNHJ120616SNHD |
| Toolholder Material | Steel |
