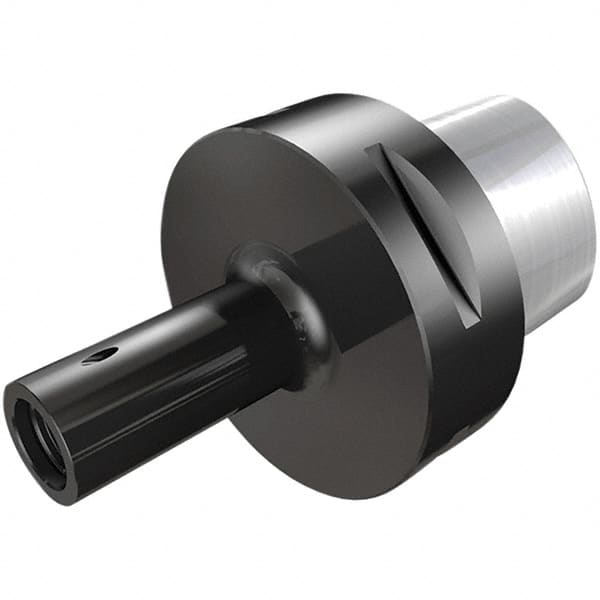

Iscar - Multimaster 63mm Camfix 63 Taper Shank Milling Tip Insert Holder & Shank - 65mm Projection, T12 Neck Thread, 18.3mm Nose Diam
Item #: 41764382
Brand: Iscar
Model #: 3107202
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | Taper Shank |
| Shank Taper Size | Camfix 63 |
| Shank Diameter (mm) | 63.00 |
| Projection (mm) | 65.00 |
| Neck Thread Size | T12 |
| Nose Diameter (mm) | 18.30 |
| Effective Length (mm) | 38.00 |
