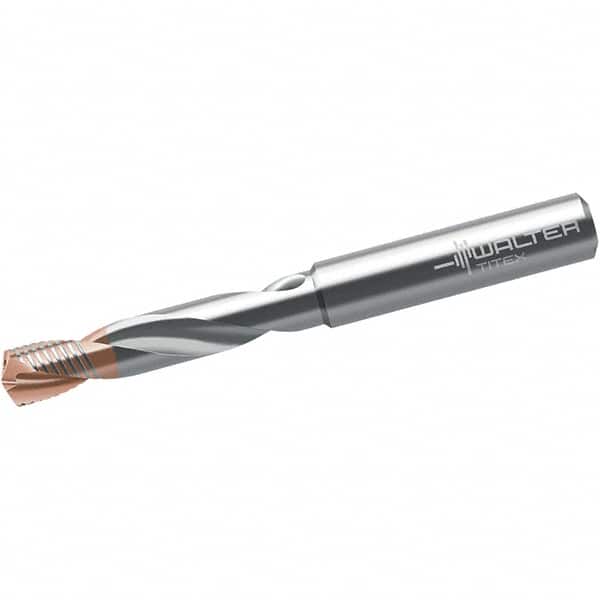

Walter-Titex - 5.8mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - TiNAl/AlCrN Finish, Right Hand Cut, 28mm Flute Length, 66mm OAL, Straight Shank, Through Coolant
Item #: 41793704
Brand: Walter-Titex
Model #: 6745095
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2283 |
| Drill Bit Size (mm) | 5.80 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiNAl/AlCrN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1020 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5980 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Maximum Drilling Depth (mm) | 20.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.7870 |
| Number of Flutes | 2 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 1.06 |
| Drill Point Length (Decimal Inch) | 0.0420 |
| Series/List | DC170 |
