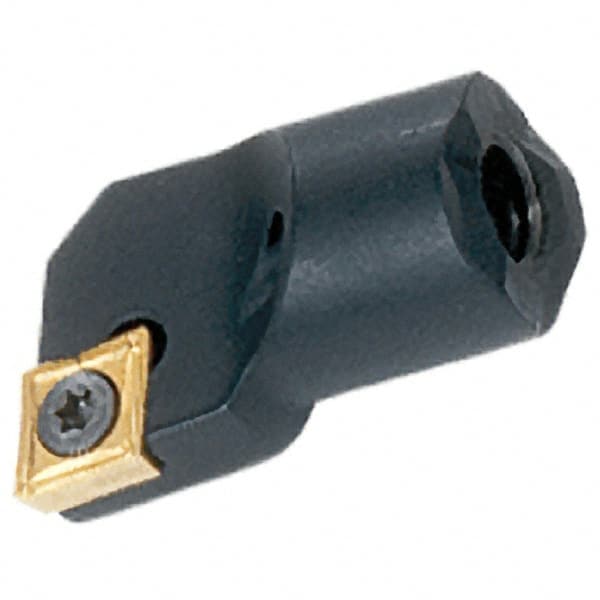

Iscar - Size E12, 15.8mm Min Diam, 24.8mm Max Depth, Right Hand Modular Boring Cutting Unit Head
Item #: 41863135
Brand: Iscar
Model #: 3601977
Product Specifications
| System Size | E12 |
| Series Name | Isoturn |
| Minimum Bore Diameter (mm) | 15.80 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 24.80 |
| Insert Style | CCET-WF; CCGT-AF; CCGT-AS; CCGW/CCMW-M2 (CBN); CCMT (CBN); CCMT (PCD); CCMT-14; CCMT-PF; CCMT-WG; CCMT/CCGT; CCMT/CCGT-SM |
| Head Length/Projection (mm) | 24.80 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 9.00 |
| Head Diameter Excluding Insert (mm) | 12.00 |
| Complete Insert Compatibility | CCGT 060202; CCGT 060202L; CCGT 060204; CCMT 060202-14; CCMT 060204-14 |
