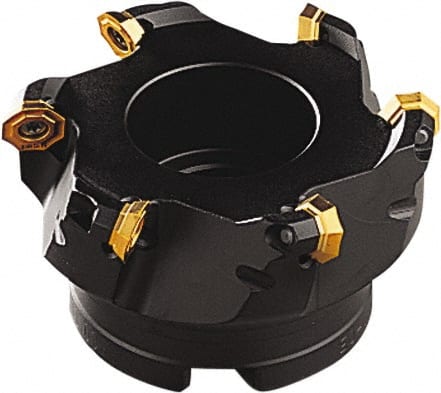

Seco - 109mm Cut Diam, 32mm Arbor Hole, 3.5mm Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 7 Inserts, OF.. 05.. Insert, Right Hand Cut, 7 Flutes, Series OctoMill
Item #: 41894452
Brand: Seco
Model #: 69162
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 109.00 |
| Cutting Diameter (Decimal Inch) | 4.2913 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 43 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | OF.. 05.. |
| Series | OctoMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Number of Flutes | 7 |
| Cutting Rake Angle | 15 |
| Rake | Positive |
| Hub Diameter (Decimal Inch) | 3.0315 |
| Hub Diameter (mm) | 77.00 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Maximum Body Diameter (Decimal Inch) | 3.9370 |
| Maximum RPM | 8400 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | OFEX 05T305FR-E06; OFEX 05T305N-E04; OFEX 05T305N-M05; OFEX 05T305TN-D09; OFEX 05T305TN-M08; OFEX 05T305TN-ME07; OFMT 050405TR-M14; OFMT 050405TR-ME12 |
